Kawasaki frame plate – engraved manufacturer plate

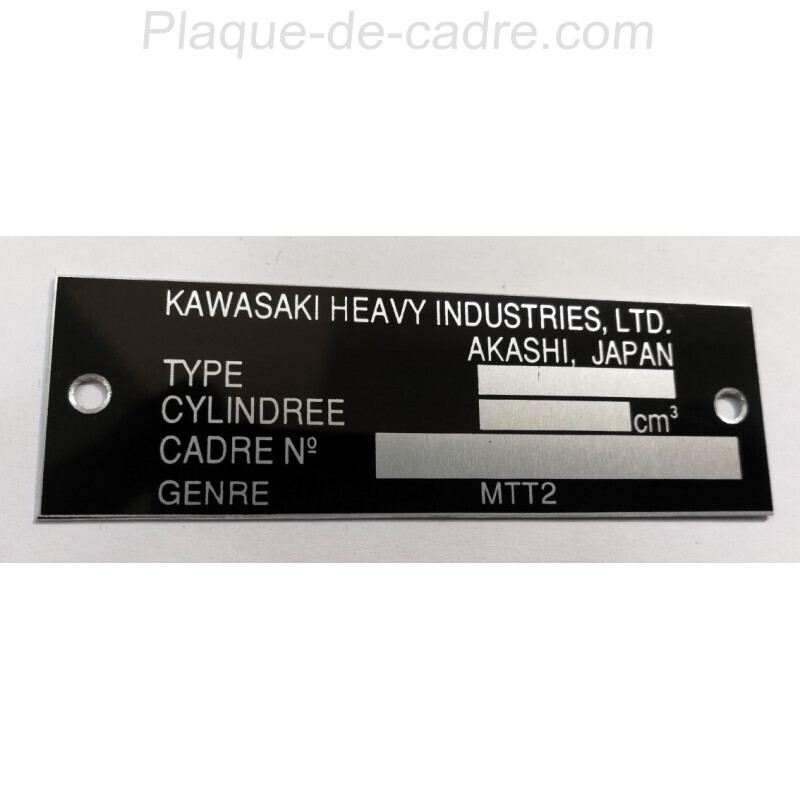

Kawasaki frame plate (engraved)

We produce your Kawasaki identification plate to match the original layout: an engraved frame plate made in our workshop, for a clean restoration finish.

This manufacturer plate is also used as a serial number plate; in the French context it may be referred to as a mines plate for administrative files.

Specifications

• Material: aluminium
• Thickness: 0.5 mm (≈ 0.02 in)
• Fitting: 2 holes / 2 rivets (as shown on the sample plate)

Engraved data (examples)

• TYPE
• cc
• Frame No.
• Category (genre)

Standard drilling

For drilling, hole centers are always 5 mm (≈ 0.20 in) from the edges. With 2 horizontal holes: pitch = width − 10 mm (≈ width − 0.39 in). With 2 vertical holes: pitch = height − 10 mm (≈ height − 0.39 in). With 4 corner holes: horizontal pitch = width − 10 mm (≈ width − 0.39 in) and vertical pitch = height − 10 mm (≈ height − 0.39 in).

Covered models (examples)

Depending on year and series, this plate can suit many Kawasaki models, for example Z (Z1, Z650, Z750, Z900, Z1000), H (H1/H2), KZ, GPZ, ZX, Ninja, KX, KLX, KLR…

Layouts and codes vary by version. A clear photo of your old plate helps us reproduce the exact layout and labels.

Information to provide

• Your data: Frame No., type, cc, year (if known).
• If possible: plate dimensions and hole positions.
